[논문 구현] PyTorch로 GoogLeNet(2014) 구현하고 학습하기

 이번 포스팅에서는 GoogLeNet(Inception-v1)을 파이토치로 구현하고 학습까지 해보겠습니다.



 논문 리뷰는 아래 포스팅에서 확인하실 수 있습니다.

[논문 리뷰] GoogLeNet (2014) 리뷰와 파이토치 구현



 전체 코드는 여기에서 확인하실 수 있습니다! 스타도 부탁드리겠습니다!



1. 데이터셋 불러오기

 데이터셋은 torchvision 패키지에서 제공하는 STL10 dataset을 이용합니다.

 STL10 dataset은 10개의 label로 이루어져 있으며, train dataset 5000개 이미지, test dataset 8000개 이미지로 이루어져 있습니다.



 우선, 구글 colab에 mount 합니다.

from google.colab import drive
drive.mount('googlenet')



 STL10 dataset을 불러옵니다.

# specify the data path
path2data = '/content/googlenet/MyDrive/data'

# if not exists the path, make the directory
if not os.path.exists(path2data):
    os.mkdir(path2data)

# load dataset
train_ds = datasets.STL10(path2data, split='train', download=True, transform=transforms.ToTensor())
val_ds = datasets.STL10(path2data, split='test', download=True, transform=transforms.ToTensor())

print(len(train_ds))
print(len(val_ds))



 normalize transforamtion을 정의하기 위해 dataset의 평균, 표준편차를 계산합니다.

# To normalize the dataset, calculate the mean and std
train_meanRGB = [np.mean(x.numpy(), axis=(1,2)) for x, _ in train_ds]
train_stdRGB = [np.std(x.numpy(), axis=(1,2)) for x, _ in train_ds]

train_meanR = np.mean([m[0] for m in train_meanRGB])
train_meanG = np.mean([m[1] for m in train_meanRGB])
train_meanB = np.mean([m[2] for m in train_meanRGB])
train_stdR = np.mean([s[0] for s in train_stdRGB])
train_stdG = np.mean([s[1] for s in train_stdRGB])
train_stdB = np.mean([s[2] for s in train_stdRGB])


val_meanRGB = [np.mean(x.numpy(), axis=(1,2)) for x, _ in val_ds]
val_stdRGB = [np.std(x.numpy(), axis=(1,2)) for x, _ in val_ds]

val_meanR = np.mean([m[0] for m in val_meanRGB])
val_meanG = np.mean([m[1] for m in val_meanRGB])
val_meanB = np.mean([m[2] for m in val_meanRGB])

val_stdR = np.mean([s[0] for s in val_stdRGB])
val_stdG = np.mean([s[1] for s in val_stdRGB])
val_stdB = np.mean([s[2] for s in val_stdRGB])

print(train_meanR, train_meanG, train_meanB)
print(val_meanR, val_meanG, val_meanB)



 transformation 객체를 생성합니다.

# define the image transformation
train_transformation = transforms.Compose([
                        transforms.ToTensor(),
                        transforms.Resize(224),
                        transforms.Normalize([train_meanR, train_meanG, train_meanB],[train_stdR, train_stdG, train_stdB]),
                        transforms.RandomHorizontalFlip(),
])

val_transformation = transforms.Compose([
                        transforms.ToTensor(),
                        transforms.Resize(224),
                        transforms.Normalize([train_meanR, train_meanG, train_meanB],[train_stdR, train_stdG, train_stdB]),
])

# apply transforamtion
train_ds.transform = train_transformation
val_ds.transform = val_transformation

# create DataLoader
train_dl = DataLoader(train_ds, batch_size=32, shuffle=True)
val_dl = DataLoader(val_ds, batch_size=32, shuffle=True)

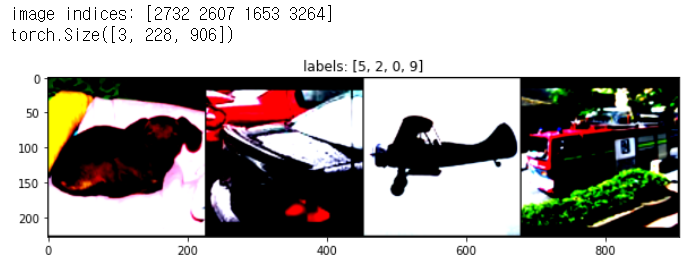

 샘플 이미지를 확인합니다.

# display sample images
def show(img, y=None, color=True):
    npimg = img.numpy()
    npimg_tr = np.transpose(npimg, (1, 2, 0))
    plt.imshow(npimg_tr)

    if y is not None:
        plt.title('labels: ' + str(y))

np.random.seed(0)
torch.manual_seed(0)

grid_size=4
rnd_inds=np.random.randint(0,len(train_ds),grid_size)
print("image indices:",rnd_inds)

x_grid=[train_ds[i][0] for i in rnd_inds]
y_grid=[train_ds[i][1] for i in rnd_inds]

x_grid=utils.make_grid(x_grid, nrow=4, padding=2)
print(x_grid.shape)

# call helper function
plt.figure(figsize=(10,10))
show(x_grid,y_grid)



2. 모델 구축하기

 이제 GoogLeNet을 구축하겠습니다. 코드는 유튜브를 참고했습니다.

class GoogLeNet(nn.Module):
    def __init__(self,aux_logits=True, num_classes=10, init_weights=True):
        super(GoogLeNet, self).__init__()
        assert aux_logits == True or aux_logits == False
        self.aux_logits = aux_logits

        # conv_block takes in_channels, out_channels, kernel_size, stride, padding
        # Inception block takes out1x1, red_3x3, out_3x3, red_5x5, out_5x5, out_1x1pool

        self.conv1 = conv_block(3, 64, kernel_size=7, stride=2, padding=3)
        self.maxpool1 = nn.MaxPool2d(3, 2, 1)
        self.conv2 = conv_block(64, 192, kernel_size=3, stride=1, padding=1)
        self.maxpool2 = nn.MaxPool2d(3, 2, 1)
        self.inception3a = Inception_block(192, 64, 96, 128, 16, 32, 32)
        self.inception3b = Inception_block(256, 128, 128, 192, 32, 96, 64)
        self.maxpool3 = nn.MaxPool2d(3, 2, 1)
        self.inception4a = Inception_block(480, 192, 96, 208, 16, 48, 64)

        # auxiliary classifier

        self.inception4b = Inception_block(512, 160, 112, 224, 24, 64, 64)
        self.inception4c = Inception_block(512, 128, 128, 256, 24, 64, 64)
        self.inception4d = Inception_block(512, 112, 144, 288, 32, 64, 64)

        # auxiliary classifier

        self.inception4e = Inception_block(528, 256, 160, 320, 32, 128, 128)
        self.maxpool4 = nn.MaxPool2d(3, 2, 1)
        self.inception5a = Inception_block(832, 256, 160, 320, 32, 128, 128)
        self.inception5b = Inception_block(832, 384, 192, 384, 48, 128, 128)

        self.avgpool = nn.AvgPool2d(7, 1)
        self.dropout = nn.Dropout(p=0.4)
        self.fc1 = nn.Linear(1024, num_classes)

        if self.aux_logits:
            self.aux1 = InceptionAux(512, num_classes)
            self.aux2 = InceptionAux(528, num_classes)
        else:
            self.aux1 = self.aux2 = None

        # weight initialization
        if init_weights:
            self._initialize_weights()

    def forward(self, x):
        x = self.conv1(x)
        x = self.maxpool1(x)
        x = self.conv2(x)
        x = self.maxpool2(x)
        x = self.inception3a(x)
        x = self.inception3b(x)
        x = self.maxpool3(x)
        x = self.inception4a(x)

        if self.aux_logits and self.training:
            aux1 = self.aux1(x)

        x = self.inception4b(x)
        x = self.inception4c(x)
        x = self.inception4d(x)

        if self.aux_logits and self.training:
            aux2 = self.aux2(x)

        x = self.inception4e(x)
        x = self.maxpool4(x)
        x = self.inception5a(x)
        x = self.inception5b(x)
        x = self.avgpool(x)

        x = x.view(x.shape[0], -1)

        x = self.dropout(x)
        x = self.fc1(x)

        if self.aux_logits and self.training:
            return x, aux1, aux2
        else:
            return x

    # define weight initialization function
    def _initialize_weights(self):
        for m in self.modules():
            if isinstance(m, nn.Conv2d):
                nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu')
                if m.bias is not None:
                    nn.init.constant_(m.bias, 0)
            elif isinstance(m, nn.BatchNorm2d):
                nn.init.constant_(m.weight, 1)
                nn.init.constant_(m.bias, 0)
            elif isinstance(m, nn.Linear):
                nn.init.normal_(m.weight, 0, 0.01)
                nn.init.constant_(m.bias, 0)

class conv_block(nn.Module):
    def __init__(self, in_channels, out_channels, **kwargs):
        super(conv_block, self).__init__()

        self.conv_layer = nn.Sequential(
            nn.Conv2d(in_channels, out_channels, **kwargs),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(),
        )

    def forward(self, x):
        return self.conv_layer(x)


class Inception_block(nn.Module):
    def __init__(self, in_channels, out_1x1, red_3x3, out_3x3, red_5x5, out_5x5, out_1x1pool):
        super(Inception_block, self).__init__()

        self.branch1 = conv_block(in_channels, out_1x1, kernel_size=1)

        self.branch2 = nn.Sequential(
            conv_block(in_channels, red_3x3, kernel_size=1),
            conv_block(red_3x3, out_3x3, kernel_size=3, padding=1),
        )

        self.branch3 = nn.Sequential(
            conv_block(in_channels, red_5x5, kernel_size=1),
            conv_block(red_5x5, out_5x5, kernel_size=5, padding=2),
        )

        self.branch4 = nn.Sequential(
            nn.MaxPool2d(kernel_size=3, stride=1, padding=1),
            conv_block(in_channels, out_1x1pool, kernel_size=1)
        )

    def forward(self, x):
        # 0차원은 batch이므로 1차원인 filter 수를 기준으로 각 branch의 출력값을 묶어줍니다.
        x = torch.cat([self.branch1(x), self.branch2(x), self.branch3(x), self.branch4(x)], 1)
        return x

# auxiliary classifier의 loss는 0.3이 곱해지고, 최종 loss에 추가합니다. 정규화 효과가 있습니다.
class InceptionAux(nn.Module):
    def __init__(self, in_channels, num_classes):
        super(InceptionAux, self).__init__()

        self.conv = nn.Sequential(
            nn.AvgPool2d(kernel_size=5, stride=3),
            conv_block(in_channels, 128, kernel_size=1),
        )

        self.fc = nn.Sequential(
            nn.Linear(2048, 1024),
            nn.ReLU(),
            nn.Dropout(),
            nn.Linear(1024, num_classes),
        )

    def forward(self,x):
        x = self.conv(x)
        x = x.view(x.shape[0], -1)
        x = self.fc(x)
        return x

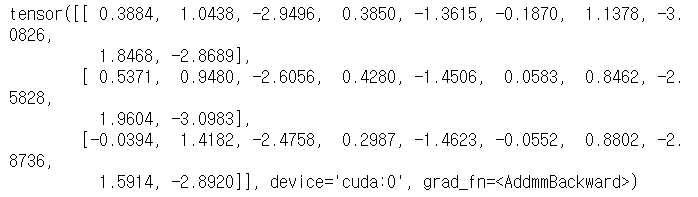

 성공적으로 모델이 구축됬는지 확인합니다.

x = torch.randn(3, 3, 224, 224).to(device)
output = model(x)
print(output)

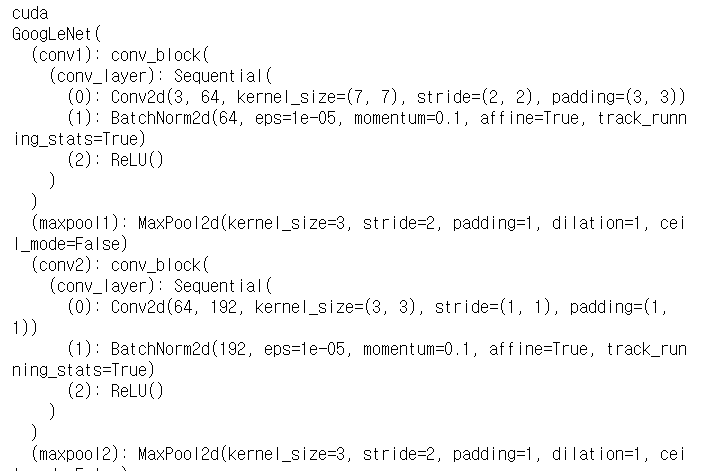

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
print(device)

model = GoogLeNet(aux_logits=True, num_classes=10, init_weights=True).to(device)
print(model)

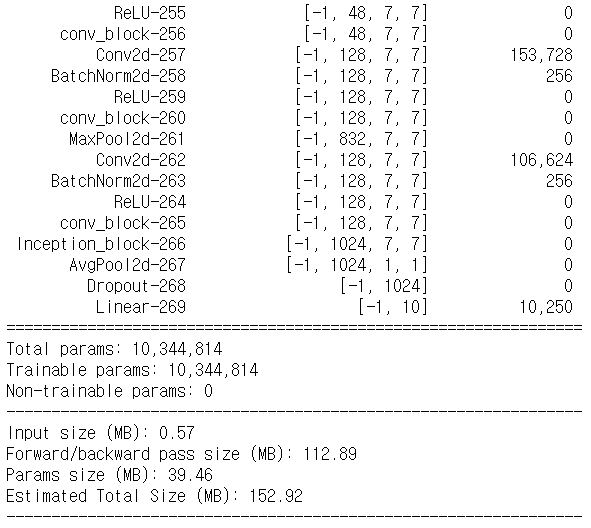

 model summry를 출력합니다.

summary(model, input_size=(3,224,224), device=device.type)

 VGG16은 800MB인것과 비교하면 가볍네요ㅎㅎ

 실제로 동일한 조건에서 학습해보니, VGG16은 1epoch당 5분, GoogLeNet은 1epoch당 2분이 소요됩니다.



3. 학습하기

학습에 필요한 함수를 정의합니다.

loss_func = nn.CrossEntropyLoss(reduction='sum')
opt = optim.Adam(model.parameters(), lr=0.001)

from torch.optim.lr_scheduler import StepLR
lr_scheduler = StepLR(opt, step_size=30, gamma=0.1)

def get_lr(opt):
    for param_group in opt.param_groups:
        return param_group['lr']



def metric_batch(output, target):
    pred = output.argmax(dim=1, keepdim=True)
    corrects = pred.eq(target.view_as(pred)).sum().item()
    return corrects



def loss_batch(loss_func, outputs, target, opt=None):
    if np.shape(outputs)[0] == 3:
        output, aux1, aux2 = outputs

        output_loss = loss_func(output, target)
        aux1_loss = loss_func(aux1, target)
        aux2_loss = loss_func(aux2, target)

        loss = output_loss + 0.3*(aux1_loss + aux2_loss)
        metric_b = metric_batch(output,target)

    else:
        loss = loss_func(outputs, target)
        metric_b = metric_batch(outputs, target)

    if opt is not None:
        opt.zero_grad()
        loss.backward()
        opt.step()

    return loss.item(), metric_b



def loss_epoch(model, loss_func, dataset_dl, sanity_check=False, opt=None):
    running_loss = 0.0
    running_metric = 0.0
    len_data = len(dataset_dl.dataset)

    for xb, yb in dataset_dl:
        xb = xb.to(device)
        yb = yb.to(device)
        output= model(xb)

        loss_b, metric_b = loss_batch(loss_func, output, yb, opt)

        running_loss += loss_b

        if metric_b is not None:
            running_metric += metric_b

        if sanity_check is True:
            break

    loss = running_loss / len_data
    metric = running_metric / len_data

    return loss, metric



def train_val(model, params):
    num_epochs=params["num_epochs"]
    loss_func=params["loss_func"]
    opt=params["optimizer"]
    train_dl=params["train_dl"]
    val_dl=params["val_dl"]
    sanity_check=params["sanity_check"]
    lr_scheduler=params["lr_scheduler"]
    path2weights=params["path2weights"]

    loss_history = {'train': [], 'val': []}
    metric_history = {'train': [], 'val': []}

    best_model_wts = copy.deepcopy(model.state_dict())

    best_loss = float('inf')

    start_time = time.time()
    for epoch in range(num_epochs):
        current_lr = get_lr(opt)
        print('Epoch {}/{}, current lr={}'.format(epoch, num_epochs - 1, current_lr))

        model.train()
        train_loss, train_metric = loss_epoch(model, loss_func, train_dl, sanity_check, opt)
        loss_history['train'].append(train_loss)
        metric_history['train'].append(train_metric)

        model.eval()
        with torch.no_grad():
            val_loss, val_metric = loss_epoch(model, loss_func, val_dl, sanity_check)

        if val_loss < best_loss:
            best_loss = val_loss
            best_model_wts = copy.deepcopy(model.state_dict())

            torch.save(model.state_dict(), path2weights)
            print('Copied best model weights!')

        loss_history['val'].append(val_loss)
        metric_history['val'].append(val_metric)

        lr_scheduler.step()

        print('train loss: %.6f, val loss: %.6f, accuracy: %.2f, time: %.4f min' %(train_loss, val_loss, 100*val_metric, (time.time()-start_time)/60))
        print('-'*10)

    model.load_state_dict(best_model_wts)

    return model, loss_history, metric_history



 위 코드에서 중요한 점은 aux1 loss와 aux2 loss를 total loss에 더해줘야 합니다.

 저는 이렇게 구현했습니다ㅎㅎ

def loss_batch(loss_func, outputs, target, opt=None):
    if np.shape(outputs)[0] == 3:
        output, aux1, aux2 = outputs

        output_loss = loss_func(output, target)
        aux1_loss = loss_func(aux1, target)
        aux2_loss = loss_func(aux2, target)

        loss = output_loss + 0.3*(aux1_loss + aux2_loss)
        metric_b = metric_batch(output,target)

    else:
        loss = loss_func(outputs, target)
        metric_b = metric_batch(outputs, target)

    if opt is not None:
        opt.zero_grad()
        loss.backward()
        opt.step()

    return loss.item(), metric_b





 하이퍼파라미터를 설정합니다.

# definc the training parameters
params_train = {
    'num_epochs':100,
    'optimizer':opt,
    'loss_func':loss_func,
    'train_dl':train_dl,
    'val_dl':val_dl,
    'sanity_check':False,
    'lr_scheduler':lr_scheduler,
    'path2weights':'./models/weights.pt',
}

# create the directory that stores weights.pt
def createFolder(directory):
    try:
        if not os.path.exists(directory):
            os.makedirs(directory)
    except OSerror:
        print('Error')
createFolder('./models')

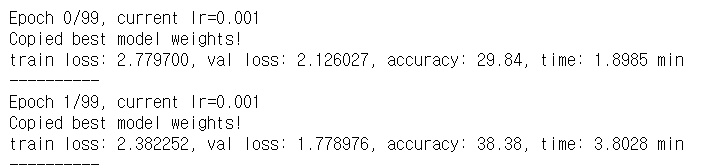

 학습 시작!

model, loss_hist, metric_hist = train_val(model, params_train)

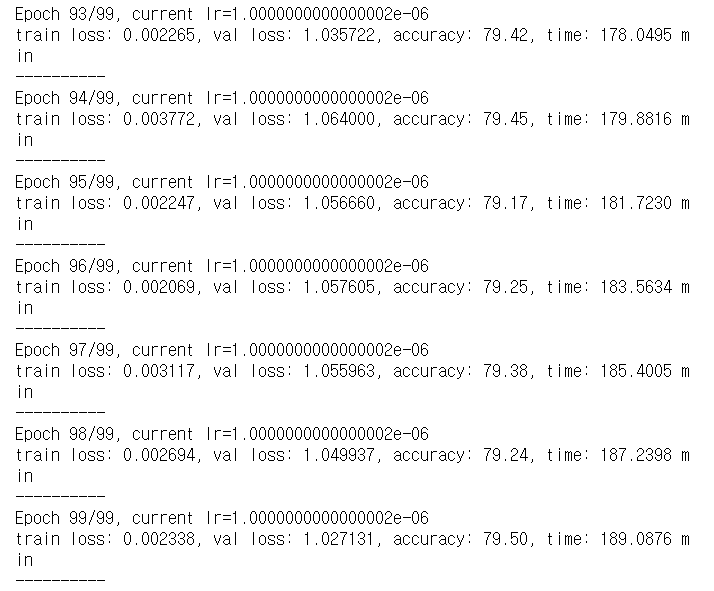

 100epochs 학습하는데 3시간이 걸렸네요ㅎㅎ



 아래 함수를 실행하면 epoch당 loss, accuracy를 시각화 할 수 있습니다.

 저는 자리를 비운 사이에 코랩이 끊겨 loss history가 날라갔네요ㅎㅎ



# Train-Validation Progress
num_epochs=params_train["num_epochs"]

# plot loss progress
plt.title("Train-Val Loss")
plt.plot(range(1,num_epochs+1),loss_hist["train"],label="train")
plt.plot(range(1,num_epochs+1),loss_hist["val"],label="val")
plt.ylabel("Loss")
plt.xlabel("Training Epochs")
plt.legend()
plt.show()

# plot accuracy progress
plt.title("Train-Val Accuracy")
plt.plot(range(1,num_epochs+1),metric_hist["train"],label="train")
plt.plot(range(1,num_epochs+1),metric_hist["val"],label="val")
plt.ylabel("Accuracy")
plt.xlabel("Training Epochs")
plt.legend()
plt.show()
