[논문 구현] PyTorch로 RetinaNet(2017) 구현하고 학습하기

 RetinaNet을 파이토치로 구현하고, VOC dataset으로 전이 학습까지 진행해보도록 하겠습니다. Computer Vision을 공부하시는 분들에게 많은 도움이 됬으면 합니다. 저도 공부하는 과정에 있어, 구현이 완벽하지 않습니다. 개선점이 있다면 지적 바랍니다.



 논문 리뷰는 아래에서 확인하실 수 있습니다.

[논문 읽기] RetinaNet(2017) 리뷰, Focal Loss for Dense Object Detection



 전체 코드는 아래에서 확인하실 수 있습니다.

Seonghoon-Yu/Paper_Review_and_Implementation_in_PyTorch



 아래 깃허브 코드를 참고하여 구현했습니다.

kuangliu/pytorch-retinanet



 작업 환경은 Google Colab에서 진행했으며, 초보자 분들도 쉽게 따라올 수 있도록 구현해보았습니다.



목차

•  1. VOC 2007 dataset 불러오기
•  2. Transforms 정의하고, dataset에 적용하기
•  3. DataEncoder 정의하기
•  4. DataLoader 생성하기
•  5. 모델 구축하기

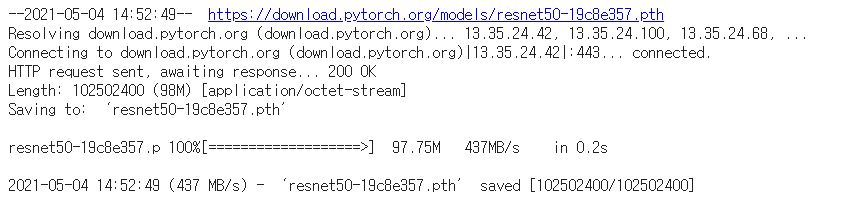

•  6. 사전 학습된 가중치 불러오고 적용하기
•  7. 손실 함수 정의하기
•  8. 학습을 위한 함수 정의하기
•  9. 학습하기
•  10. Inference

필요한 라이브러리 불러오기

# transforms를 위한 모듈
!pip install -U albumentations

from torchvision.datasets import VOCDetection
from torchvision.transforms.functional import to_tensor, to_pil_image
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.nn.init as init

from PIL import Image, ImageDraw, ImageFont
import os
import xml.etree.ElementTree as ET
from typing import Any, Callable, Dict, Optional, Tuple, List
import warnings
import tarfile
import collections
import numpy as np
import math
import matplotlib.pyplot as plt
%matplotlib inline

import torchvision.transforms as transforms
from torch.utils.data import Dataset
from torch.utils.data import DataLoader
import cv2
from torch import optim
import albumentations as A
from albumentations.pytorch import ToTensor
import os
import time

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')



1. VOC 2007 dataset 불러오기

• torchvision에서 제공하는 VOC 2007 dataset을 불러와서 custom dataset을 생성합니다.

# VOC 2007 dataset을 저장할 위치
path2data = '/content/voc'
if not os.path.exists(path2data):
    os.mkdir(path2data)

# VOC class names
classes = [
    "aeroplane",
    "bicycle",
    "bird",
    "boat",
    "bottle",
    "bus",
    "car",
    "cat",
    "chair",
    "cow",
    "diningtable",
    "dog",
    "horse",
    "motorbike",
    "person",
    "pottedplant",
    "sheep",
    "sofa",
    "train",
    "tvmonitor"
]

# PyTorch에서 제공하는 VOC dataset을 상속받아, custom dataset을 생성합니다.
class myVOCDetection(VOCDetection):
    def __getitem__(self, index):
        img = np.array(Image.open(self.images[index]).convert('RGB'))
        target = self.parse_voc_xml(ET.parse(self.annotations[index]).getroot()) # xml파일 분석하여 dict으로 받아오기

        targets = [] # 바운딩 박스 좌표
        labels = [] # 바운딩 박스 클래스

        # 바운딩 박스 정보 받아오기
        for t in target['annotation']['object']:
            label = np.zeros(5)
            label[:] = t['bndbox']['xmin'], t['bndbox']['ymin'], t['bndbox']['xmax'], t['bndbox']['ymax'], classes.index(t['name'])

            targets.append(list(label[:4])) # 바운딩 박스 좌표
            labels.append(label[4])         # 바운딩 박스 클래스

        if self.transforms:
            augmentations = self.transforms(image=img, bboxes=targets)
            img = augmentations['image']
            targets = augmentations['bboxes']

        return img, targets, labels

    def parse_voc_xml(self, node: ET.Element) -> Dict[str, Any]: # xml 파일을 dictionary로 반환
        voc_dict: Dict[str, Any] = {}
        children = list(node)
        if children:
            def_dic: Dict[str, Any] = collections.defaultdict(list)
            for dc in map(self.parse_voc_xml, children):
                for ind, v in dc.items():
                    def_dic[ind].append(v)
            if node.tag == "annotation":
                def_dic["object"] = [def_dic["object"]]
            voc_dict = {node.tag: {ind: v[0] if len(v) == 1 else v for ind, v in def_dic.items()}}
        if node.text:
            text = node.text.strip()
            if not children:
                voc_dict[node.tag] = text
        return voc_dict

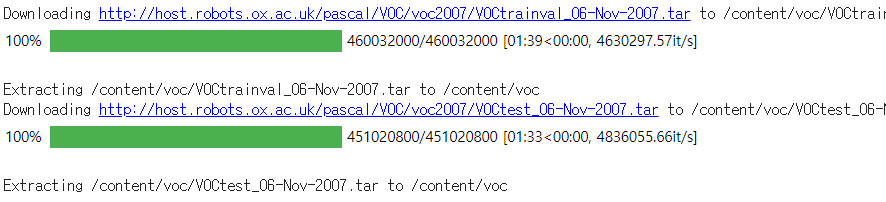

# train, validation dataset을 생성합니다.
train_ds = myVOCDetection(path2data, year='2007', image_set='train', download=True)
val_ds = myVOCDetection(path2data, year='2007', image_set='test', download=True)

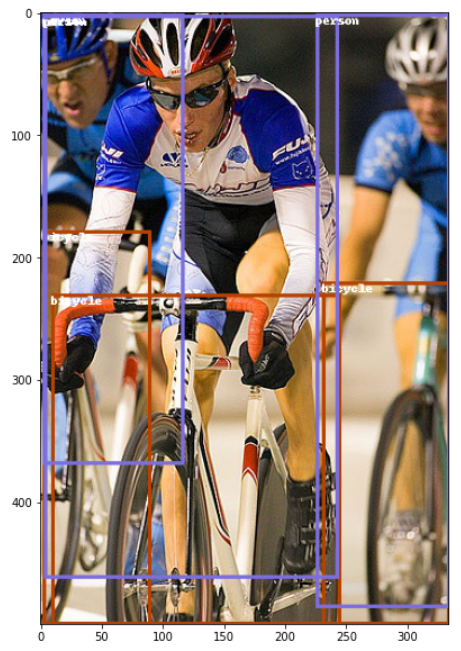

 샘플 이미지를 확인합니다.

# 샘플 이미지 확인
img, target, label = train_ds[2]
colors = np.random.randint(0, 255, size=(80,3), dtype='uint8') # 바운딩 박스 색상

# 시각화 함수
def show(img, targets, labels, classes=classes):
    img = to_pil_image(img)
    draw = ImageDraw.Draw(img)
    targets = np.array(targets)
    W, H = img.size

    for tg,label in zip(targets,labels):
        id_ = int(label) # class
        bbox = tg[:4]    # [x1, y1, x2, y2]

        color = [int(c) for c in colors[id_]]
        name = classes[id_]

        draw.rectangle(((bbox[0], bbox[1]), (bbox[2], bbox[3])), outline=tuple(color), width=3)
        draw.text((bbox[0], bbox[1]), name, fill=(255,255,255,0))
    plt.imshow(np.array(img))

plt.figure(figsize=(10,10))
show(img, target, label)



2. Transforms를 정의하고, dataset에 적용하기

• transforms는 albumentation 모듈을 사용합니다.
• albumentation 모듈은 이미지와 바운딩 박스 좌표를 함께 변경하여 편리합니다.

# transforms 정의
IMAGE_SIZE = 600
scale = 1.0

# 이미지에 padding을 적용하여 종횡비를 유지시키면서 크기가 600x600 되도록 resize 합니다.
train_transforms = A.Compose([
                    A.LongestMaxSize(max_size=int(IMAGE_SIZE * scale)),
                    A.PadIfNeeded(min_height=int(IMAGE_SIZE*scale), min_width=int(IMAGE_SIZE*scale),border_mode=cv2.BORDER_CONSTANT),
                    ToTensor()
                    ],
                    bbox_params=A.BboxParams(format='pascal_voc', min_visibility=0.4, label_fields=[])
                    )

val_transforms = A.Compose([
                    A.LongestMaxSize(max_size=int(IMAGE_SIZE * scale)),
                    A.PadIfNeeded(min_height=int(IMAGE_SIZE*scale), min_width=int(IMAGE_SIZE*scale),border_mode=cv2.BORDER_CONSTANT),
                    ToTensor()
                    ],
                    bbox_params=A.BboxParams(format='pascal_voc', min_visibility=0.4, label_fields=[])
                    )

# transforms 적용하기
train_ds.transforms = train_transforms
val_ds.transforms = val_transforms



3. DataEncoder 정의하기

• 각 피쳐맵에서 모든 cell에 9개의 앵커 박스를 생성합니다.
• ground-truth와의 iou를 기준으로 anchor에 positive, negative를 할당합니다.

class DataEncoder:
    def __init__(self):
        self.anchor_areas = [32*32., 64*64., 128*128., 256*256., 512*512.] # 피쳐맵 크기 p3 -> p7
        self.aspect_ratios = [1/2., 1/1., 2/1.]            # 앵커 박스 종횡비, w/h
        self.scale_ratios = [1., pow(2,1/3.), pow(2,2/3.)] # 앵커 박스 scale
        self.anchor_wh = self._get_anchor_wh() # 5개의 피쳐맵 각각에 해당하는 9개의 앵커 박스 생성

    def _get_anchor_wh(self):
        # 각 피쳐맵에서 사용할 앵커 박스 높이와 넓이를 계산합니다.
        anchor_wh = []
        for s in self.anchor_areas: # 각 피쳐맵 크기 추출
            for ar in self.aspect_ratios: # ar = w/h
                h = math.sqrt(s/ar)
                w = ar * h
                for sr in self.scale_ratios: # scale
                    anchor_h = h*sr
                    anchor_w = w*sr
                    anchor_wh.append([anchor_w, anchor_h])
        num_fms = len(self.anchor_areas)
        return torch.Tensor(anchor_wh).view(num_fms, -1, 2) # [#fms, #anchors_pre_cell, 2], [5, 9, 2]

    def _get_anchor_boxes(self, input_size):
        # 피쳐맵의 모든 cell에 앵커 박스 할당
        num_fms = len(self.anchor_areas) # 5
        fm_sizes = [(input_size/pow(2.,i+3)).ceil() for i in range(num_fms)] # 각 피쳐맵 stride 만큼 입력 크기 축소

        boxes = []
        for i in range(num_fms): # p3 ~ p7
            fm_size = fm_sizes[i] # i 번째 피쳐맵 크기 추출
            grid_size = input_size / fm_size # 입력 크기를 피쳐맵 크기로 나누어 grid size 생성
            fm_w, fm_h = int(fm_size[0]), int(fm_size[1])
            xy = self._meshgrid(fm_w, fm_h) + 0.5 #[fm_h * fm_w, 2] 피쳐맵 cell index 생성
            xy = (xy*grid_size).view(fm_h, fm_w, 1, 2).expand(fm_h, fm_w, 9, 2) # anchor 박스 좌표
            wh = self.anchor_wh[i].view(1,1,9,2).expand(fm_h, fm_w, 9, 2) # anchor 박스 높이와 너비
            box = torch.cat([xy,wh],3) # [x,y,w,h]
            boxes.append(box.view(-1,4))
        return torch.cat(boxes, 0)

    # 피쳐맵의 각 셀에 anchor 박스 생성하고, positive와 negative 할당
    def encode(self, boxes, labels, input_size):
        input_size = torch.Tensor([input_size, input_size]) if isinstance(input_size, int) else torch.Tensor(input_size)
        anchor_boxes = self._get_anchor_boxes(input_size) # 앵커 박스 생성
        boxes = self._change_box_order(boxes, 'xyxy2xywh') # xyxy -> cxcywh

        ious = self._box_iou(anchor_boxes, boxes, order='xywh') # ground-truth와 anchor의 iou 계산
        max_ious, max_ids = ious.max(1) # 가장 높은 iou를 지닌 앵커 추출
        boxes = boxes[max_ids]

        # 앵커 박스와의 offset 계산
        loc_xy = (boxes[:,:2]-anchor_boxes[:,:2]) / anchor_boxes[:,2:]
        loc_wh = torch.log(boxes[:,2:]/anchor_boxes[:,2:])
        loc_targets = torch.cat([loc_xy, loc_wh], 1)

        # class 할당
        cls_targets = 1 + labels[max_ids]
        cls_targets[max_ious<0.5] = 0 # iou < 0.5 anchor는 negative
        ignore = (max_ious>0.4) & (max_ious<0.5) # [0.4,0.5] 는 무시
        cls_targets[ignore] = -1
        return loc_targets, cls_targets

    # encode된 값을 원래대로 복구 및 nms 진행
    def decode(self,loc_preds, cls_preds, input_size):
        cls_thresh = 0.5
        nms_thresh = 0.5

        input_size = torch.Tensor([input_size,input_size]) if isinstance(input_size, int) else torch.Tensor(input_size)
        anchor_boxes = self._get_anchor_boxes(input_size) # 앵커 박스 생성

        loc_xy = loc_preds[:,:2] # 결과값 offset 추출
        loc_wh = loc_preds[:,2:]

        xy = loc_xy * anchor_boxes[:,2:] + anchor_boxes[:,:2] # offset + anchor
        wh = loc_wh.exp() * anchor_boxes[:,2:]
        boxes = torch.cat([xy-wh/2, xy+wh/2], 1)

        score, labels = cls_preds.sigmoid().max(1)
        ids = score > cls_thresh
        ids = ids.nonzero().squeeze()
        keep = self._box_nms(boxes[ids], score[ids], threshold=nms_thresh) # nms
        return boxes[ids][keep], labels[ids][keep]

    # cell index 생성 함수
    def _meshgrid(self, x, y, row_major=True):
        a = torch.arange(0,x)
        b = torch.arange(0,y)
        xx = a.repeat(y).view(-1,1)
        yy = b.view(-1,1).repeat(1,x).view(-1,1)
        return torch.cat([xx,yy],1) if row_major else torch.cat([yy,xx],1)

    # x1,y1,x2,y2 <-> cx,cy,w,h
    def _change_box_order(self, boxes, order):
        assert order in ['xyxy2xywh','xywh2xyxy']
        boxes = np.array(boxes)
        a = boxes[:,:2]
        b = boxes[:,2:]
        a, b = torch.Tensor(a), torch.Tensor(b)
        if order == 'xyxy2xywh':
            return torch.cat([(a+b)/2,b-a+1],1) # xywh
        return torch.cat([a-b/2, a+b/2],1) # xyxy

    # 두 박스의 iou 계산
    def _box_iou(self, box1, box2, order='xyxy'):
        if order == 'xywh':
            box1 = self._change_box_order(box1, 'xywh2xyxy')
            box2 = self._change_box_order(box2, 'xywh2xyxy')

        N = box1.size(0)
        M = box2.size(0)

        lt = torch.max(box1[:,None,:2], box2[:,:2])
        rb = torch.min(box1[:,None,2:], box2[:,2:])

        wh = (rb-lt+1).clamp(min=0)
        inter = wh[:,:,0] * wh[:,:,1]

        area1 = (box1[:,2]-box1[:,0]+1) * (box1[:,3]-box1[:,1]+1)
        area2 = (box2[:,2]-box2[:,0]+1) * (box2[:,3]-box2[:,1]+1)
        iou = inter / (area1[:,None] + area2 - inter)
        return iou

    # nms
    def _box_nms(self, bboxes, scores, threshold=0.5, mode='union'):
        x1 = bboxes[:,0]
        y1 = bboxes[:,1]
        x2 = bboxes[:,2]
        y2 = bboxes[:,3]

        areas = (x2-x1+1) * (y2-y1+1)
        _, order = scores.sort(0, descending=True) # confidence 순 정렬
        keep = []
        while order.numel() > 0:
            if order.numel() == 1:
                keep.append(order.data)
                break
            i = order[0] # confidence 가장 높은 anchor 추출
            keep.append(i) # 최종 detection에 저장

            xx1 = x1[order[1:]].clamp(min=x1[i])
            yy1 = y1[order[1:]].clamp(min=y1[i])
            xx2 = x2[order[1:]].clamp(max=x2[i])
            yy2 = y2[order[1:]].clamp(max=y2[i])

            w = (xx2-xx1+1).clamp(min=0)
            h = (yy2-yy1+1).clamp(min=0)
            inter = w*h

            if mode == 'union':
                ovr = inter / (areas[i] + areas[order[1:]] - inter)
            elif mode == 'min':
                ovr = inter / areas[order[1:]].clamp(max=areas[i])
            else:
                raise TypeError('Unknown nms mode: %s.' % mode)

            ids = (ovr<=threshold).nonzero().squeeze()
            if ids.numel() == 0:
                break
            order = order[ids+1]
        return torch.LongTensor(keep)



4. DataLoader 생성하기

# collate_fn
# targets에 encode를 수행하고, tensor로 변경합니다.
def collate_fn(batch):
    encoder = DataEncoder()
    imgs = [x[0] for x in batch]
    boxes = [torch.Tensor(x[1]) for x in batch]
    labels = [torch.Tensor(x[2]) for x in batch]
    h,w = 600, 600
    num_imgs = len(imgs)
    inputs = torch.zeros(num_imgs, 3, h, w)

    loc_targets = []
    cls_targets = []
    for i in range(num_imgs):
        inputs[i] = imgs[i]
        loc_target, cls_target = encoder.encode(boxes=boxes[i], labels=labels[i], input_size=(w,h))
        loc_targets.append(loc_target)
        cls_targets.append(cls_target)
    return inputs, torch.stack(loc_targets), torch.stack(cls_targets)

train_dl = DataLoader(train_ds, batch_size=4, shuffle=True, collate_fn=collate_fn)
val_dl = DataLoader(val_ds, batch_size=4, shuffle=True, collate_fn=collate_fn)



5. 모델 구축하기

• RetinaNet은 ResNet + FPN 구조입니다.
• ResNet을 구현할 때, PyTorch 공식 홈페이지에서 구현한 ResNet 모델과 변수 명이 동일해야 pre-trained model을 사용할 수 있습니다.

# BottleNeck of ResNet
class Bottleneck(nn.Module):
    expand = 4

    def __init__(self, in_channels, inner_channels, stride=1):
        super().__init__()

        self.conv1 = nn.Conv2d(in_channels, inner_channels, 1, stride=1, padding=0, bias=False)
        self.bn1 = nn.BatchNorm2d(inner_channels)
        self.conv2 = nn.Conv2d(inner_channels, inner_channels, 3, stride=stride, padding=1, bias=False)
        self.bn2 = nn.BatchNorm2d(inner_channels)
        self.conv3 = nn.Conv2d(inner_channels, inner_channels*self.expand, 1, stride=1, padding=0)
        self.bn3 = nn.BatchNorm2d(inner_channels*self.expand)
        self.relu = nn.ReLU()

        self.downsample = nn.Sequential()

        if stride != 1 or in_channels != inner_channels*self.expand:
            self.downsample = nn.Sequential(
                nn.Conv2d(in_channels, inner_channels*self.expand, 1, stride=stride, bias=False),
                nn.BatchNorm2d(inner_channels*self.expand)
            )

        self.relu = nn.ReLU()

    def forward(self, x):
        output = self.relu(self.bn1(self.conv1(x)))
        output = self.relu(self.bn2(self.conv2(output)))
        output = self.bn3(self.conv3(output))
        output = self.relu(output + self.downsample(x))

        return output

# check
# def test():
#     x = torch.randn(1, 56,13,13).to(device)
#     net = Bottleneck(x.size(1), x.size(1)).to(device)
#     output = net(x)
#     print(output.size())

# test()

# FPN은 ResNet의 피쳐맵에서 multi-scale로 특징을 추출합니다.
class FPN(nn.Module):
    def __init__(self, num_blocks):
        super(FPN, self).__init__()
        self.in_channels = 64

        self.conv1 = nn.Conv2d(3, 64, 7, stride=2, padding=3, bias=False) # 300x300
        self.bn1 = nn.BatchNorm2d(64)
        self.relu = nn.ReLU()
        self.maxpool = nn.MaxPool2d(3, stride=2, padding=1) # 150x150

        # Bottom-up layers and ResNet
        # PyTorch 공식 홈페이지 ResNet 구현 코드와 변수명이 동일해야, pre-trained model을 불러와서 사용할 수 있습니다.
        self.layer1 = self._make_layer(64, num_blocks[0], stride=1)  # c2, 150x150
        self.layer2 = self._make_layer(128, num_blocks[1], stride=2)  # c3 75x75
        self.layer3 = self._make_layer(256, num_blocks[2], stride=2) # c4 38x38
        self.layer4 = self._make_layer(512, num_blocks[3], stride=2) # c5
        self.conv6 = nn.Conv2d(2048, 256, 3, stride=2, padding=1)    # p6
        self.conv7 = nn.Sequential(                                  # p7
            nn.ReLU(),
            nn.Conv2d(256, 256, 3, stride=2, padding=1)
        )

        # Lateral layers
        self.lateral_1 = nn.Conv2d(2048, 256, 1, stride=1, padding=0)
        self.lateral_2 = nn.Conv2d(1024, 256, 1, stride=1, padding=0)
        self.lateral_3 = nn.Conv2d(512, 256, 1, stride=1, padding=0)

        # Top-down layers
        self.top_down_1 = nn.Conv2d(256, 256, 3, stride=1, padding=1)
        self.top_down_2 = nn.Conv2d(256, 256, 3, stride=1, padding=1)

        self.upsample_1 = nn.Upsample(scale_factor=2, mode='bilinear', align_corners=False)
        self.upsample_2 = nn.Upsample(size=(75,75), mode='bilinear', align_corners=False) # size=(75,75)를 지정해야 합니다.

    def forward(self, x):
        # Feature extractor(ResNet)
        c1 = self.relu(self.bn1(self.conv1(x)))
        c1 = self.maxpool(c1)
        c2 = self.layer1(c1)
        c3 = self.layer2(c2)
        c4 = self.layer3(c3)
        c5 = self.layer4(c4)

        # FPN
        p6 = self.conv6(c5)
        p7 = self.conv7(p6)
        p5 = self.lateral_1(c5)
        p4 = self.top_down_1(self.upsample_1(p5) + self.lateral_2(c4))
        p3 = self.top_down_2(self.upsample_2(p4) + self.lateral_3(c3))

        return p3, p4, p5, p6, p7

    def _make_layer(self, inner_channels, num_block, stride):
        strides = [stride] + [1] * (num_block-1)
        layers = []
        for stride in strides:
            layers.append(Bottleneck(self.in_channels, inner_channels, stride=stride))
            self.in_channels = inner_channels*Bottleneck.expand
        return nn.Sequential(*layers)

def FPN50(): # ResNet-50
    return FPN([3,4,6,3])

# check
# if __name__ == '__main__':
#     x = torch.randn(3, 3, 600, 600).to(device)
#     model = FPN50().to(device)
#     outputs = model(x)
#     for output in outputs:
#         print(output.size())

# FPN 출력값을 입력으로 받아 예측을 수행합니다.
class RetinaNet(nn.Module):
    num_anchors = 9

    def __init__(self, num_classes=20):
        super().__init__()
        self.fpn = FPN50()
        self.num_classes = num_classes
        self.loc_head = self._make_head(self.num_anchors*4) # 바운딩 박스 좌표 예측
        self.cls_head = self._make_head(self.num_anchors*self.num_classes) # 바운딩 박스 클래스 예측

    def forward(self, x):
        # p3: batch, channels, H, W
        fms = self.fpn(x) # p3, p4, p5, p6, p7
        loc_preds = []
        cls_preds = []
        for fm in fms: # fpn 출력값에 classifier 추가
            loc_pred = self.loc_head(fm)
            cls_pred = self.cls_head(fm)
            loc_pred = loc_pred.permute(0,2,3,1).contiguous().view(x.size(0),-1,4)  # [N, 9*4,H,W] -> [N,H,W, 9*4] -> [N,H*W*9, 4]
            cls_pred = cls_pred.permute(0,2,3,1).contiguous().view(x.size(0),-1,self.num_classes) # [N,9*20,H,W] -> [N,H,W,9*20] -> [N,H*W*9,20]
            loc_preds.append(loc_pred)
            cls_preds.append(cls_pred)
        return torch.cat(loc_preds,1), torch.cat(cls_preds,1)

    def _make_head(self, out_channels): # 예측을 수행하는 Layer 생성
        layers = []
        for _ in range(4):
            layers.append(nn.Conv2d(256,256,3, stride=1, padding=1))
            layers.append(nn.ReLU())
        layers.append(nn.Conv2d(256, out_channels, 3, stride=1, padding=1)) # (batch,9*4,H,W) or (batch,9*20,H,W)
        return nn.Sequential(*layers)

    def freeze_bn(self): # pre-trained model을 사용하므로, BN freeze
        for layer in self.modules():
            if isinstance(layer, nn.BatchNorm2d):
                layer.eval()

# check
# if __name__ == '__main__':
#     x = torch.randn(10,3,600,600).to(device)
#     model = RetinaNet().to(device)
#     loc_preds, cls_preds = model(x)
#     print(loc_preds.size()) # (batch, 5 * H*W * 9, 4)
#     print(cls_preds.size()) # (batch, 5 * H*W * 9, 20)



6. 사전 학습된 가중치 불러오기

# 사전 학습된 ResNet50의 가중치 다운로드 'https://download.pytorch.org/models/resnet50-19c8e357.pth'
!wget 'https://download.pytorch.org/models/resnet50-19c8e357.pth'

# 가중치 변경
path2weight = '/content/resnet50-19c8e357.pth' # 가중치 저장할 경로
d = torch.load(path2weight) # 사전학습 가중치 읽어오기
fpn = FPN50()               # FPN50 생성
dd = fpn.state_dict()       # fpn 가중치 파일 추출
for k in d.keys():          # 사전학습 가중치로부터 가중치 추출
    if not k.startswith('fc'): # fc layer 제외
        dd[k] = d[k]        # 변수 명이 동일한 경우, 가중치 받아오기

model = RetinaNet()         # RetinaNet 가중치 초기화
for m in model.modules():
    if isinstance(m, nn.Conv2d):
        init.normal_(m.weight, mean=0, std=0.01)
        if m.bias is not None:
            init.constant_(m.bias, 0)
    elif isinstance(m, nn.BatchNorm2d):
        m.weight.data.fill_(1)
        m.bias.data.zero_()

pi = 0.01
init.constant_(model.cls_head[-1].bias, -math.log((1-pi)/pi))

model.fpn.load_state_dict(dd)  # fpn의 가중치를 사전 학습된 가중치로 변경
torch.save(model.state_dict(), 'model.pth') # 가중치 저장



7. 손실 함수 정의하기

# labels를 one-hot 형식으로 변경
def one_hot_embedding(labels, num_classes):
    # labels: class labels, sized [N,]
    # num_classes: 클래스 수 20
    y = torch.eye(num_classes) # [20, 20]
    np_labels = np.array(labels)
    return y[np_labels]

class FocalLoss(nn.Module):
    def __init__(self, num_classes=20):
        super().__init__()
        self.num_classes = num_classes # VOC dataset 20

    # alternative focal loss
    def focal_loss_alt(self, x, y):
        alpha = 0.25

        t = one_hot_embedding(y.data.cpu(), 1+self.num_classes)
        t = t[:,1:] # 배경 제외
        t = t.cuda()

        xt = x*(2*t-1) # xt = x if t > 0 else -x
        pt = (2*xt+1).sigmoid()

        w = alpha*t + (1-alpha)*(1-t)
        loss = -w*pt.log() / 2
        return loss.sum()

    def forward(self, loc_preds, loc_targets, cls_preds, cls_targets):
        # (loc_preds, loc_targets)와 (cls_preds, cls_targets) 사이의 loss 계산
        # loc_preds: [batch_size, #anchors, 4]
        # loc_targets: [batch_size, #anchors, 4]
        # cls_preds: [batch_size, #anchors, #classes]
        # cls_targets: [batch_size, #anchors]

        # loss = SmoothL1Loss(loc_preds, loc_targets) + FocalLoss(cls_preds, cls_targets)

        batch_size, num_boxes = cls_targets.size()
        pos = cls_targets > 0
        num_pos = pos.data.long().sum()

        # loc_loss = SmoothL1Loss(pos_loc_preds, pos_loc_targets)
        mask = pos.unsqueeze(2).expand_as(loc_preds) # [N, #anchors, 4], 객체가 존재하는 앵커박스 추출
        masked_loc_preds = loc_preds[mask].view(-1,4)      # [#pos, 4]
        masked_loc_targets = loc_targets[mask].view(-1, 4) # [#pos, 4]
        loc_loss = F.smooth_l1_loss(masked_loc_preds, masked_loc_targets, reduction='sum')

        # cls_loss = FocalLoss(loc_preds, loc_targets)
        pos_neg = cls_targets > -1 # ground truth가 할당되지 않은 anchor 삭제
        mask = pos_neg.unsqueeze(2).expand_as(cls_preds)
        masked_cls_preds = cls_preds[mask].view(-1, self.num_classes)
        cls_loss = self.focal_loss_alt(masked_cls_preds, cls_targets[pos_neg])

        # print('loc_loss: %.3f | cls_loss: %.3f' % (loc_loss.item(), cls_loss))
        loss = (loc_loss+cls_loss)/num_pos
        return loss



8. 학습을 위한 함수 정의

loss_func = FocalLoss()
opt = optim.Adam(model.parameters(), lr=0.001)

from torch.optim.lr_scheduler import ReduceLROnPlateau
lr_scheduler = ReduceLROnPlateau(opt, mode='min', factor=0.1, patience=15)

# 현재 lr 계산
def get_lr(opt):
    for param_group in opt.param_groups:
        return param_group['lr']

# batch당 loss 계산
def loss_batch(loss_func, loc_preds, loc_targets, cls_preds, cls_targets, opt=None):
    loss_b = loss_func(loc_preds, loc_targets, cls_preds, cls_targets)

    if opt is not None:
        opt.zero_grad()
        loss_b.backward()
        opt.step()

    return loss_b.item()

# epoch당 loss 계산
def loss_epoch(model, loss_func, dataset_dl, sanity_check=False, opt=None):
    running_loss = 0.0
    len_data = len(dataset_dl.dataset)

    for img, loc_targets, cls_targets in dataset_dl:
        img, loc_targets, cls_targets = img.to(device), loc_targets.to(device), cls_targets.to(device)
        loc_preds, cls_preds = model(img)

        loss_b = loss_batch(loss_func, loc_preds, loc_targets, cls_preds, cls_targets, opt)

        running_loss += loss_b

        if sanity_check is True:
            break

    loss = running_loss / len_data
    return loss

# 학습을 시작하는 함수
def train_val(model, params):
    num_epochs=params['num_epochs']
    loss_func=params['loss_func']
    opt=params['optimizer']
    train_dl=params['train_dl']
    val_dl=params['val_dl']
    sanity_check=params['sanity_check']
    lr_scheduler=params['lr_scheduler']
    path2weights=params['path2weights']

    loss_history = {'train': [], 'val': []}

    best_loss = float('inf')
    torch.save(model.state_dict(),path2weights)
    start_time = time.time()

    for epoch in range(num_epochs):
        current_lr = get_lr(opt)
        print('Epoch {}/{}, current lr = {}'.format(epoch, num_epochs-1, current_lr))

        model.train()
        train_loss = loss_epoch(model, loss_func, train_dl, sanity_check, opt)
        loss_history['train'].append(train_loss)

        model.eval()
        with torch.no_grad():
            val_loss = loss_epoch(model, loss_func, val_dl, sanity_check)
        loss_history['val'].append(val_loss)

        if val_loss < best_loss:
            best_loss = val_loss
            torch.save(model.state_dict(),path2weights)
            print('Copied best model weights!')

        lr_scheduler.step(val_loss)

        if current_lr != get_lr(opt):
            print('Loading best model weights')
            model.load_state_dict(torch.load(path2weight))

        print('train loss: %.6f, val loss: %.6f, time: %.4f min' %(train_loss, val_loss, (time.time()-start_time)/60))

    model.load_state_dict(torch.load(path2weight))
    return model, loss_history

# train 파라미터 정의
params_train = {
    'num_epochs':100,
    'optimizer':opt,
    'loss_func':loss_func,
    'train_dl':train_dl,
    'val_dl':val_dl,
    'sanity_check':False,
    'lr_scheduler':lr_scheduler,
    'path2weights':'./models/weights.pt',
}

# 가중치 저장할 폴더 생성
import os
def createFolder(directory):
    try:
        if not os.path.exists(directory):
            os.makedirs(directory)
    except OSerror:
        print('Error')
createFolder('./models')

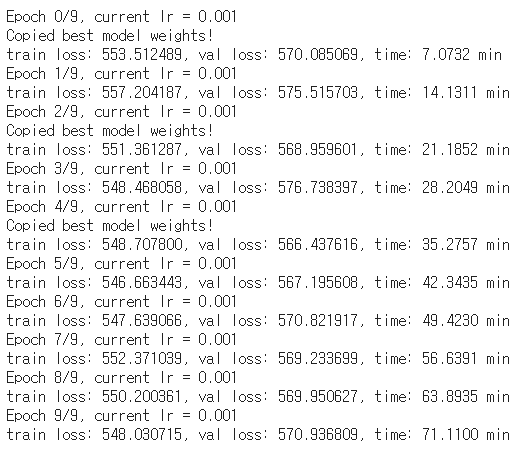

9. 학습하기



 적어도 1500 epoch는 학습 되어야 괜찮은 성능을 나타낼 것이라고 생각하지만,

 Colab 환경 상 많은 시간을 학습하지 못합니다. 중간에 자꾸 끊기네요..ㅎㅎ

 구현이 목적이므로 10 epoch만 학습하겠습니다.

model=RetinaNet().to(device)
model, loss_hist = train_val(model, params_train)

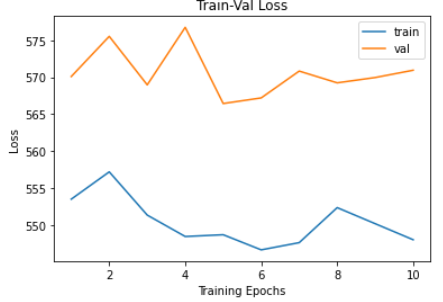

 loss history 출력

num_epochs = params_train['num_epochs']

# Plot train-val loss
plt.title('Train-Val Loss')
plt.plot(range(1, num_epochs+1), loss_hist['train'], label='train')
plt.plot(range(1, num_epochs+1), loss_hist['val'], label='val')
plt.ylabel('Loss')
plt.xlabel('Training Epochs')
plt.legend()
plt.show()

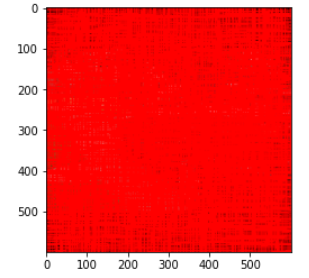

10. inference

 모델 loss가 수렴하지 않아, 바운딩 박스 예측을 잘 못하네요..ㅎㅎ!!

 여러분들은 끝까지 학습시키고 저 대신 성능을 확인해주시길 바랍니다!!

 결과도 꼭 알려주세요! ㅎㅎ



 혹시 필요하신 분들이 계실까봐 코드를 첨부합니다!

model = RetinaNet().to(device)
model.load_state_dict(torch.load('/content/models/weights.pt'))
model.eval()

# test set trainforms 적용
IMAGE_SIZE = 600
scale = 1.0

test_transforms = A.Compose([
                    A.LongestMaxSize(max_size=int(IMAGE_SIZE * scale)),
                    A.PadIfNeeded(min_height=int(IMAGE_SIZE*scale), min_width=int(IMAGE_SIZE*scale),border_mode=cv2.BORDER_CONSTANT),
                    ToTensor()
                    ])

# test 이미지 불러오기
img = Image.open('/content/voc/VOCdevkit/VOC2007/JPEGImages/000007.jpg')
w = h = 600
img = np.array(img.convert('RGB'))
img = test_transforms(image=img)
img = img['image']

x = img.unsqueeze(0).to(device) # [batch, H, W, 3]
loc_preds, cls_preds = model(x)

encoder = DataEncoder()
loc_preds, cls_preds = loc_preds.to('cpu'), cls_preds.to('cpu')

# nms 수행 및 출력 값을 바운딩박스 형태로 받아오기
boxes, labels = encoder.decode(loc_preds.data.squeeze(), cls_preds.data.squeeze(), (w,h))

# 이미지 출력
img = transforms.ToPILImage()(img)
draw = ImageDraw.Draw(img)
for box in boxes:
    draw.rectangle(list(box), outline='red')
plt.imshow(np.array(img))



Reference

github.com/kuangliu/pytorch-retinanet
