[PyTorch] Single Object Detection 모델 생성하기



 Single object detection을 위한 간단한 모델을 생성하겠습니다.



 convolutional layer, pooling layer, skip connection을 활용한 모델입니다.



# implement the model class
import torch.nn as nn
import torch.nn.functional as F

# define the bulk of the model class
class Net(nn.Module):
    def __init__(self, params):
        super(Net, self).__init__()

        C_in, H_in, W_in = params['input_shape']
        init_f = params['initial_filters']
        num_outputs = params['num_outputs']

        self.conv1 = nn.Conv2d(C_in, init_f, kernel_size=3, stride=2, padding=1)
        self.conv2 = nn.Conv2d(init_f+C_in, 2*init_f, kernel_size=3, stride=1, padding=1)
        self.conv3 = nn.Conv2d(3*init_f+C_in, 4*init_f, kernel_size=3, padding=1)
        self.conv4 = nn.Conv2d(7*init_f+C_in, 8*init_f, kernel_size=3, padding=1)
        self.conv5 = nn.Conv2d(15*init_f+C_in, 16*init_f, kernel_size=3, padding=1)
        self.fc1 = nn.Linear(16*init_f, num_outputs)

    def forward(self, x):
        identity = F.avg_pool2d(x, 4, 4)
        x = F.relu(self.conv1(x))
        x = F.max_pool2d(x, 2, 2)
        x = torch.cat((x, identity), dim=1)

        identity = F.avg_pool2d(x, 2, 2)
        x = F.relu(self.conv2(x))
        x = F.max_pool2d(x, 2, 2)
        x = torch.cat((x, identity), dim=1)

        identity = F.avg_pool2d(x, 2, 2)
        x = F.relu(self.conv3(x))
        x = F.max_pool2d(x, 2, 2)
        x = torch.cat((x, identity), dim=1)

        identity = F.avg_pool2d(x, 2, 2)
        x = F.relu(self.conv4(x))
        x = F.max_pool2d(x, 2, 2)
        x = torch.cat((x, identity), dim=1)

        x = F.relu(self.conv5(x))
        x = F.adaptive_avg_pool2d(x, 1)
        x = x.reshape(x.size(0), -1)

        x = self.fc1(x)
        return x



 single object는 모든 이미지에 object가 포함되어 있으므로 class를 분류하지 않습니다. 바운딩 박스 중심 좌표만 출력하면 됩니다. 따라서 num_outputs를 2로 설정합니다.



# define an object of the Net class
params_model = {
    'input_shape': (3, 256, 256),
    'initial_filters': 16,
    'num_outputs': 2,
}

model = Net(params_model)

# move the model to the CUDA device
if torch.cuda.is_available():
    device = torch.device('cuda')
    model = model.to(device)

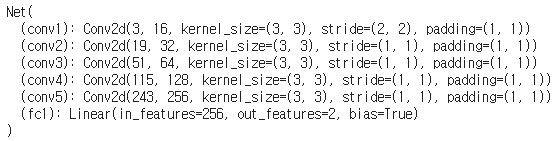

print(model)

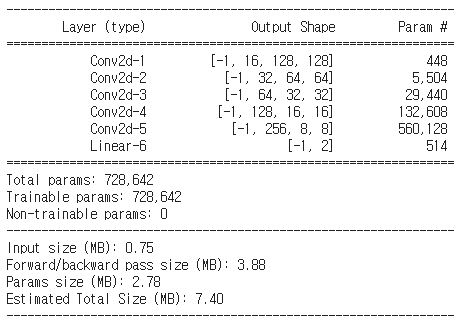

 model summary 함수로 잘 구현되었는지 확인합니다.



# get the model summary
from torchsummary import summary
summary(model, input_size=(3, 256, 256), device=device.type)
